4ch H.265 Hdmi All-in-1 6mp Dvr 1800tvl 36ir 115ft Security Camera System

 Description

 4Channel All-in-1 6MP H.265 DVR (1TB HDD) With 4pcs 1800TVL Security Camera System



4CH DVR Feature

Max Image Resolution6MP System CompressionH.265+/H.265/H.264+/H.264Main ProcessorEmbedded ProcessorOperating SystemEmbedded LinuxVideo Interface1 HDMI, 1 VGAVideo Resolution1920x1080, 1280x1024, 1280x720Multi-Screen DisplayWhen IP extension mode not enabled: 1/4; When IP extension mode enabled: 1/4/6HDCVI Camera Input5MP, 4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fpsIP Camera Input4+2 Channel, each channel up to 6MP OSDYesAudio In1Audio Out12 Way AudioReuse audio in/out, RCARecording Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIFRecording Frame Rate

Mainstream: 5M-N1~10fps), 4M-N/1080P(1~15fps); 1080P/720P/960H/D1/CIF(1~25/30fps)
Substream: D1/CIF (1~15fps)

Bit Rate32Kbps ~ 6144Kbps Per ChannelRecording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stopRecord Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 secPlayback Channels1/4Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkTrigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsVideo DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and DiagnosisAlarm InN/AAlarm Relay OutputN/ANetwork Interface1 RJ-45 Port (100M)Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)Network Max. Users128InteroperabilityONVIF 16.12, CGI ConformantMobileiPhone, AndroidRS4851 Port, for PTZ ControlUSB2 USB Ports (1 USB 2.0, 1 USB 3.0)RS232N/ARS422N/APower SupplyDC12V/4APower Consumption<10W (Without HDD)Internal HDD1 SATA Port, up to 10TB capacitye-SATAN/AOperating Conditions-10°C ~ +55°C (+14°F ~ 131°F), 10%~90% RHStorage Conditions-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RHDimensionsMini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")WeightNet weight 1.0kg (2.2lb) (without HDD); Gross weight 1.9kg (4.2lb)

Camera Feature

• SONY sensor 1800TVL
• Built-in auto gain control (AGC) circuit.
• 3-Axis Bracket Built-in
• 36 IR LED with a working distance of 100ft
• 2.8-12mm Manual Varifocal Zoom Lens
• Vandalproof IR Dome Camera

 Item Specifications

Image Sensor

SONY CMOS CCD

Minimum Illumination

0.01 Lux

S/N Ratio

52dB

Scanning System

2:1 interface

Synchronous

System Internal, Negative sync.

Auto Electronic Shutter NTSC

1/60s~1/100,000s

Gama Characteristic

0.45

IR Distance

100 Feet

IR Status

Under 10Lux by CDS

IR Power

On CDS AUTO Control

Video Output

1Vpp, 75O

Auto Gain Control

Auto

Power/Current

DC12V(+/-10%)/600mA

Lens

2.8-12mm Varifocal Zoom Lens

Dimension (mm)

131 x 93(H

Weight (g)

800

Storage Temperature

-30~+60°c RH95% MAX

Operating Temperature

-10~+45°c RH95% MAX

Box Dimension

135x 110(H) mm Weight: 1.2kg

Condition

Brand New

Package includes

• SV 4Channel 6MP All-in-1 DVR

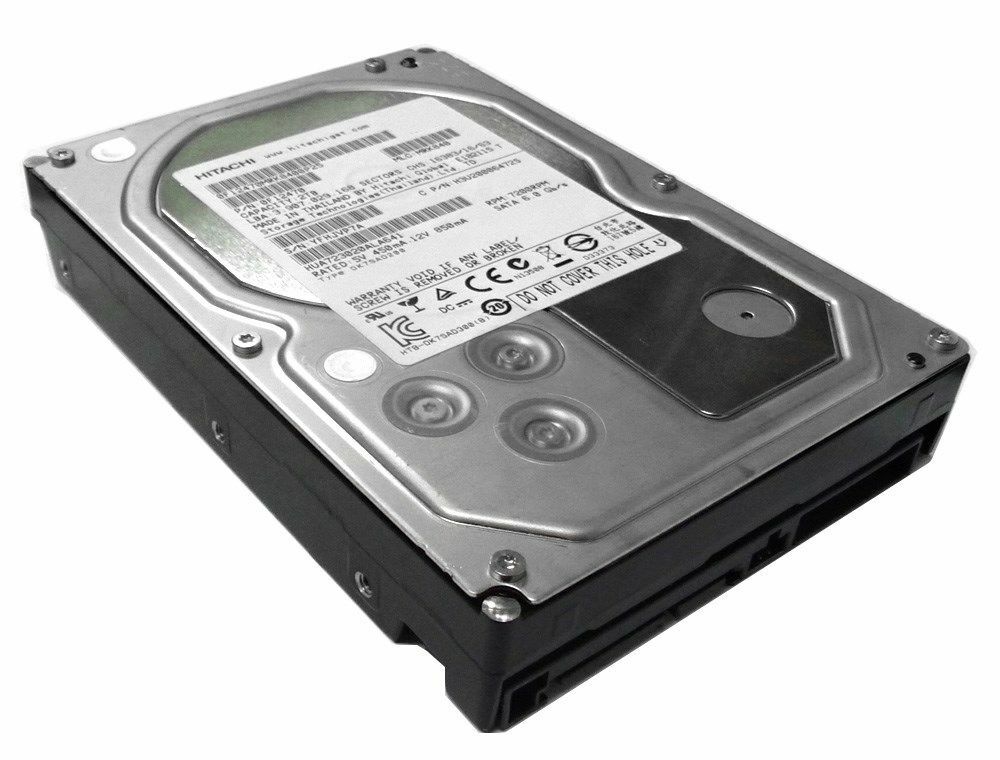

• 1TB CCTV hard drive
• 4x SV379CZG - 1800TVL Security Camera
• 2 x 50ft Power Cable
• 2 x 25ft power cable
• Power Adapter & 1 in 4 Power Splitter
• One Year warranty
